R170
Compact, discreet, and unobtrusive micro-dome with AI analytics and Rhombus sensor compatibility.
R170 Camera Specifications
Resolution
5MP sensor, 2592 x 1944 resolution
Aperture
F/2.0
Pan / Tilt / Zoom
Up to 2X digital PTZ
Field of View
132° Diagonal FoV
108° Horizontal FoV
76° Vertical FoV
Focal Length
2.8mm

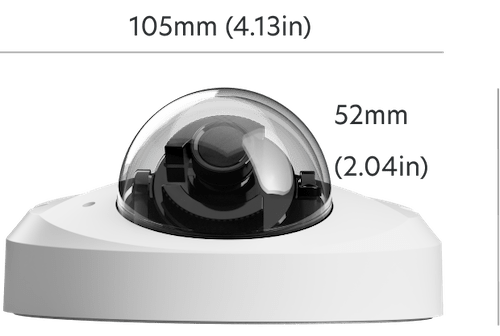

Dimensions
105mm (4.13in) x 52mm (2.04in)
Weight
0.19kg (0.43lbs)
Onboard Storage Included
128GB or 20 days
256GB or 40 days
512GB or 90 days
1TB or 180 days
Ethernet
10 / 100Mbps, MDI / MDI-X Auto Sensing
Power-Over-Ethernet
Standard 802.3af for one-cable installation
Power Consumption
Max 4.8 watts
Operating Temperature
-30˚ to 55˚ C
-22˚ to 131˚ F
Operating Humidity
10% to 90% RH
In the Box
Mounting screws
Baseline Steady State
10 - 30 Kbps per camera
HD WAN Live Streaming
530 - 720 Kbps per camera
Rhombus Sensor Network Compatible
CE, FCC, IC, UK, AUS, NZ, NDAA, TAA Compliant
R170 Compatible Accessories
For more information or to purchase accessories, contact sales@rhombus.com
- All Accessories
![selected icon]()
- Wall Mount
- Ceiling Mount
- Corner Mount
- Pole Mount
Universal Drop Ceiling Mount
$49
ACC-DCM1
Indoor adapter for mounting all dome and fisheye cameras* to drop ceilings with 9/16" and 15/16" grids.
*Also compatible with A100 Audio GatewayConnected Sensors
Video security meets real-time sensor data. Receive real-time alerts with synchronized video evidence to streamline response.

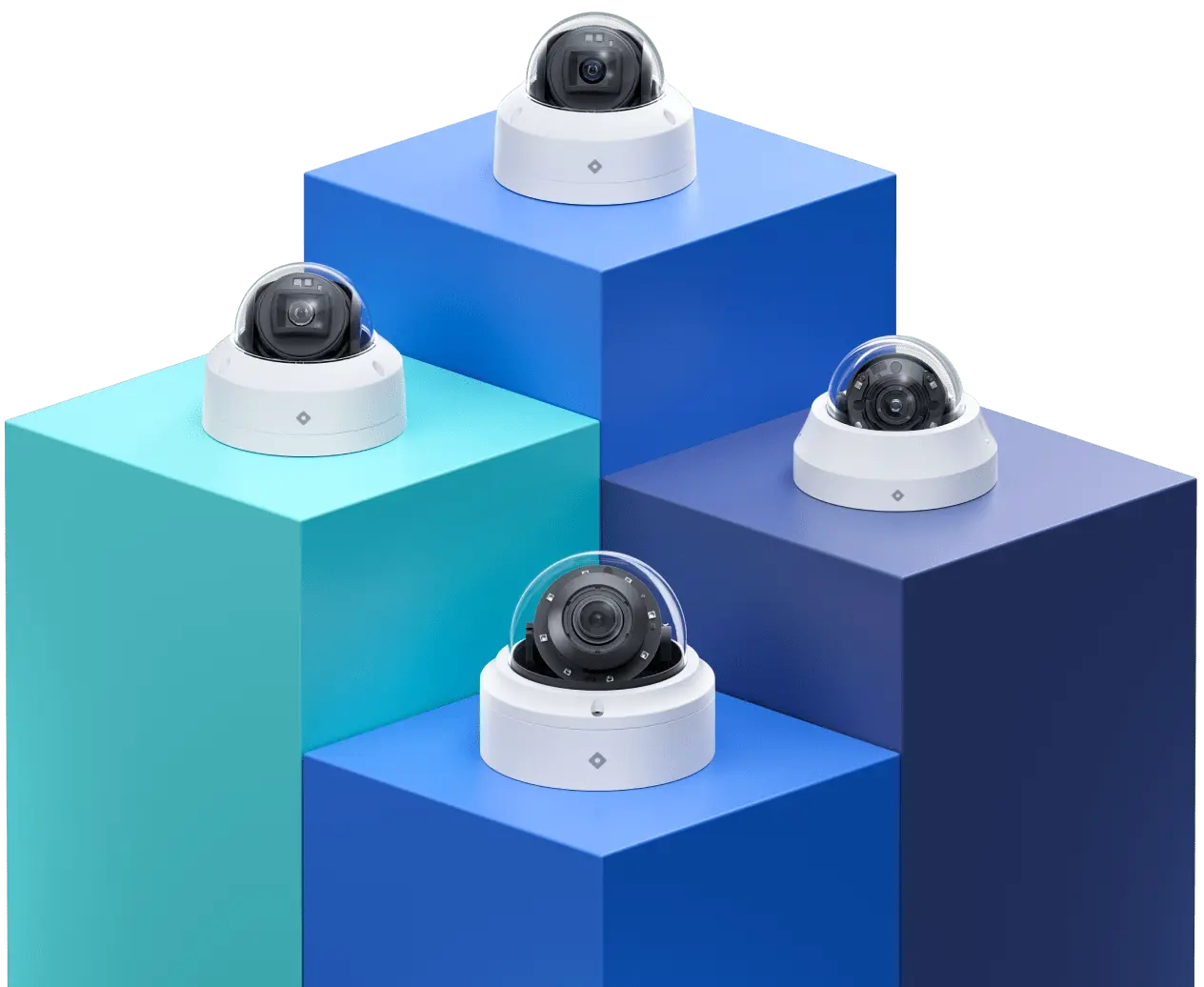

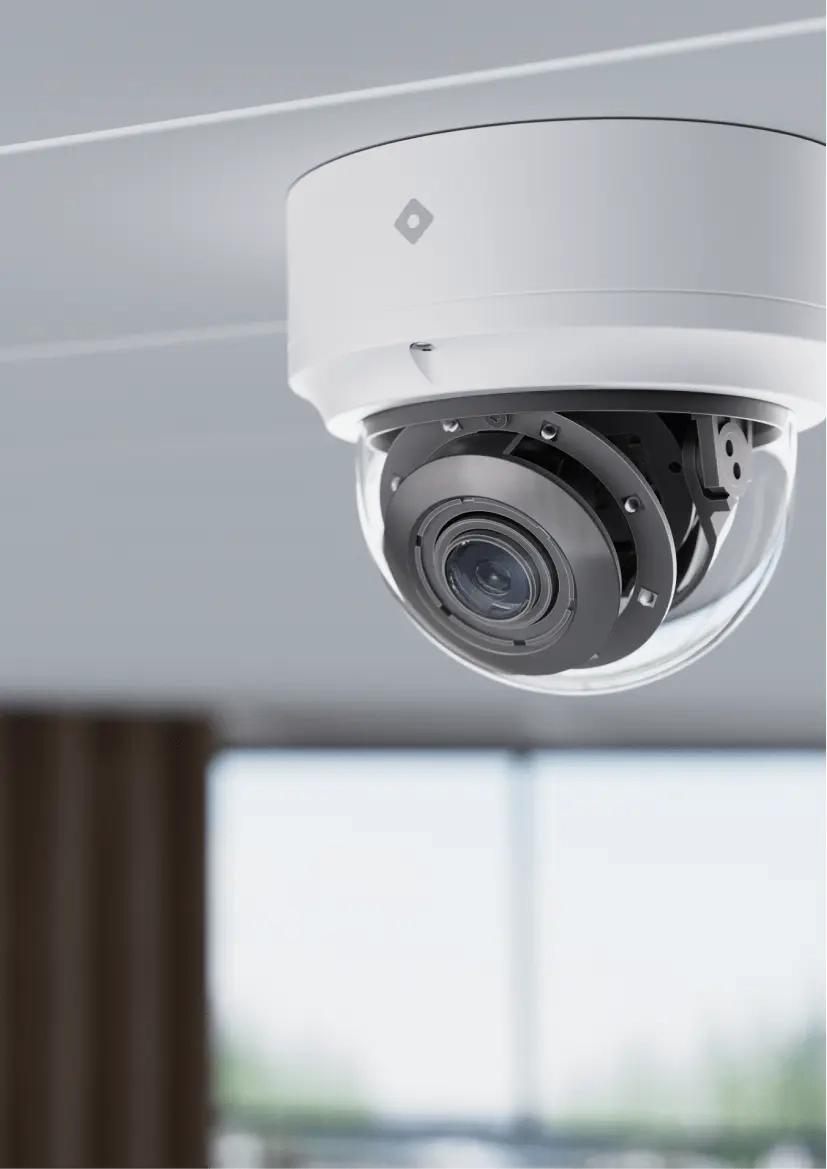

Explore Other Dome Cameras
Find the solution that’s best suited for your needs. Compare all camera models or view other dome cameras below.
