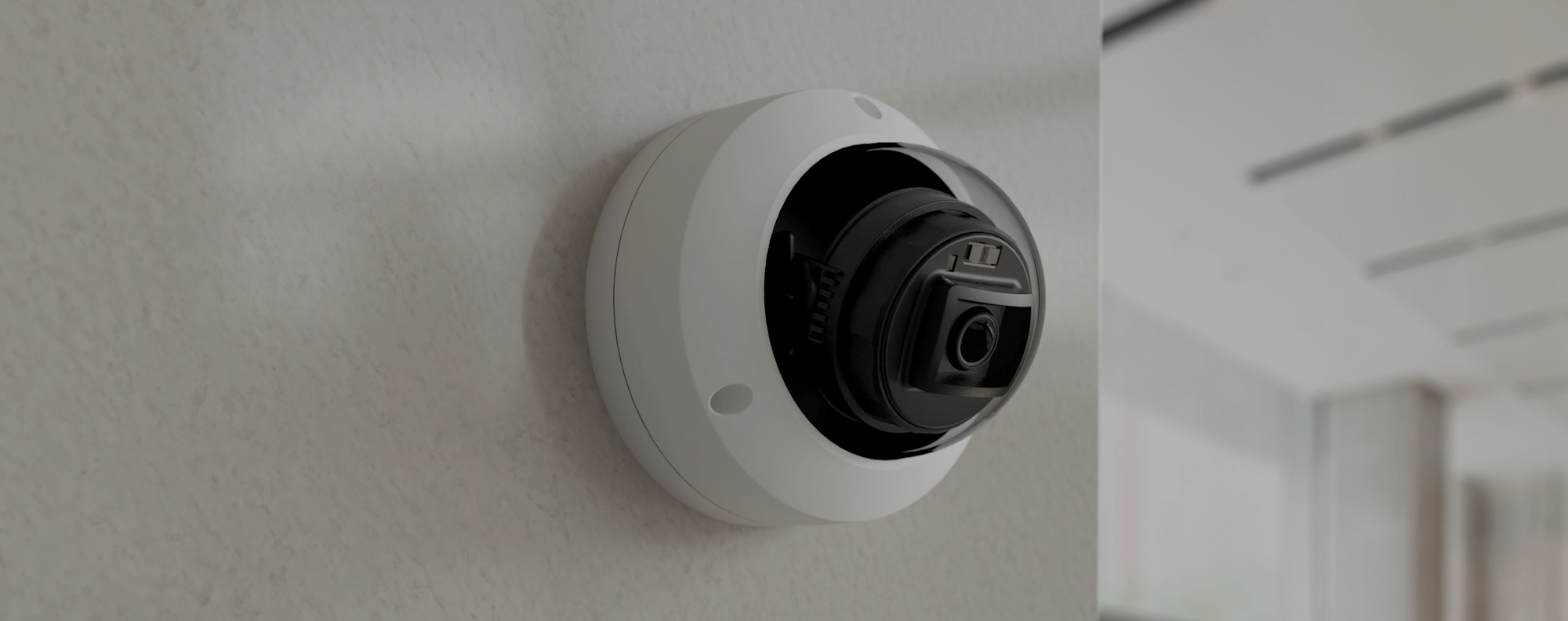

A sleek dome security camera R200 from Rhombus mounted on an indoor wall, showcasing its easy installation and zoom capabilities.
Browse All Dome Cameras

R200 Mini Dome Security Camera

All-purpose dome, ideal for general visibility in most environments, with AI analytics and Rhombus sensor compatibility.

R200 Dome Camera Specifications

Resolution
5MP sensor, 2592 x 1944 resolution
Aperture
F/2.0
Pan / Tilt / Zoom
Up to 2X digital PTZ
Field of View
116° Diagonal FoV
104° Horizontal FoV
87° Vertical FoV
Focal Length
2.8mm
Dimensions
118mm (4.64in) x 90mm (3.54in)
Weight
0.64kg (1.42lbs)
Weather Resistance
IP66
Impact Resistance
IK10
Night Vision
Infrared illuminators (100ft in low light)
Onboard Storage Included
128GB or 20 days
256GB or 40 days
512GB or 90 days
1TB or 180 days
Ethernet
10 / 100Mbps, MDI / MDI-X Auto Sensing
Power-Over-Ethernet
Standard 802.3af for one-cable installation
Power Consumption
Max 10.5 watts
Operating Temperature
-20˚ to 50˚ C
-4˚ to 122˚ F
Operating Humidity
<95% RH
In the Box
Torx key, mounting screws, anchors
Baseline Steady State
10 - 30 Kbps per camera
HD WAN Live Streaming
530 - 720 Kbps per camera
Rhombus Sensor Network Compatible
CE, FCC, IC, UK, AUS, NZ, NDAA, TAA Compliant, UL Listed
10-Year Warranty Included

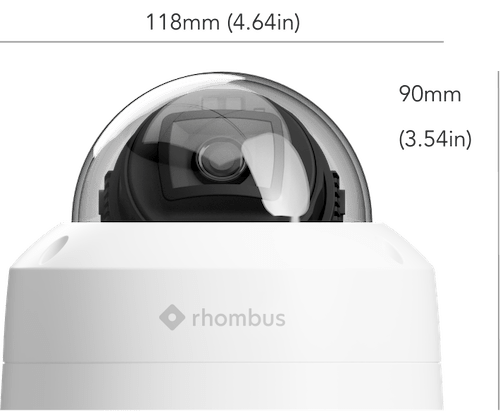

undefined camera with dimensions

R200 Dome Security Camera Accessories

For more information or to purchase accessories, contact sales@rhombus.com

Wall Mount
Ceiling Mount
Corner Mount
Pole Mount
DR20 Wall Plate

DR20 Wall Plate

$25

ACC-DR20-WP

Wall plate adapter for the DR20 Video Intercom mounted over standard 1-Gang wall boxes.

DR40 Angle Wall Mount

DR40 Angle Wall Mount

$25

ACC-DR40-AWM

30 Degree angle wall mount for DR40 Video Intercom, used to improve viewing angle. Also compatible with ACC-DR40-WP.

DR40 Wall Plate

DR40 Wall Plate

$25

ACC-DR40-WP

Wall plate adapter for the DR40 Video Intercom mounted over standard 1-Gang wall boxes.

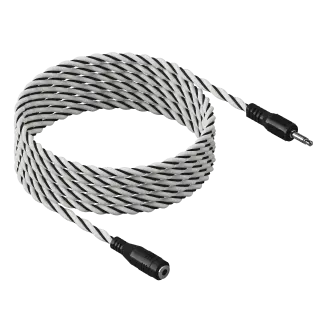

Wired Water Leak Cable

Wired Water Leak Cable

$25

ACC-ENV-LEAK

Plugs directly into the E50 Environmental Sensor and detects leaks. Daisy chain multiple to reach desired length.

Wired Temperature Probe

Wired Temperature Probe

$25

ACC-ENV-TEMP

Plugs directly into the E50 Environmental Sensor. Use for temperature monitoring of locations outside of E50 temperature range.

Extension Rod

Extension Rod

$49

ACC-ROD-40CM

Extension rod for use with Ceiling Mounts or Arms, with standard 1.5” NPT connections on each end.

Junction Box

Junction Box

$49

ACC-R100-JB2

Outdoor junction box with the conduit attachment for R120 and R200 camera.

Pendant Cap

Pendant Cap

$49

ACC-R100-CAP

R120 and R200 pendant cap. Connect to Wall Arm, Ceiling Mount, or any mounting hardware with 1.5” NPT thread.

R230 Cap

R230 Cap

$49

ACC-R23-CAP

Connect to Wall Arm, Ceiling Mount, or any mounting hardware with 1.5” NPT thread.

R230 Junction Box

R230 Junction Box

$49

ACC-R23-JB

Outdoor junction box with the conduit attachment for R230 or R360 camera models.

R360/R400 Pendant Cap

R360/R400 Pendant Cap

$49

ACC-R3R4-CAP

Connect to a Wall Arm, Ceiling Mount, or any mounting hardware with a standard 1.5” NPT thread.

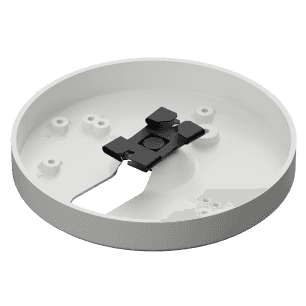

Universal Drop Ceiling Mount

Universal Drop Ceiling Mount

$49

ACC-DCM1

Indoor adapter for mounting all dome and fisheye cameras* to drop ceilings with 9/16" and 15/16" grids.

Wall Arm Junction Box

Wall Arm Junction Box

$49

ACC-ARM-JB

Junction box to provide protected space between arm and bracket.

R360 Wedge Mount

R360 Wedge Mount

$69

ACC-R3-JBW

15 Degree wedge mount/junction box, used to improve viewing angle for wall mounted fisheye cameras.

Arm

Arm

$79

ACC-R2-ARM

Mounts a downward facing camera with Cap to a wall, or corner (with Corner Bracket) or pole (with Pole Bracket).

Ceiling Mount

Ceiling Mount

$79

ACC-R2-CM

Pendant mount to be used with cap.

R520 Junction Box

R520 Junction Box

$79

ACC-R52-JB

Junction box for use with R520 camera.

Corner Bracket

Corner Bracket

$99

ACC-R2-CB

Mounts to the Arm to a wall corner.

Pole Bracket

Pole Bracket

$99

ACC-R2-PB

Mounts the Arm to a pole.

R500 Junction Box

R500 Junction Box

$99

ACC-R5-JB

Junction box for use with R500-series bullet cameras.

R500 Pole Bracket

R500 Pole Bracket

$99

ACC-R5-POLE

Mounts R500-series bullet cameras to poles.

R600 Pendant Cap

R600 Pendant Cap

$99

ACC-R600-CAP

Mount the camera to other accessories to install to ceiling or building corners.
