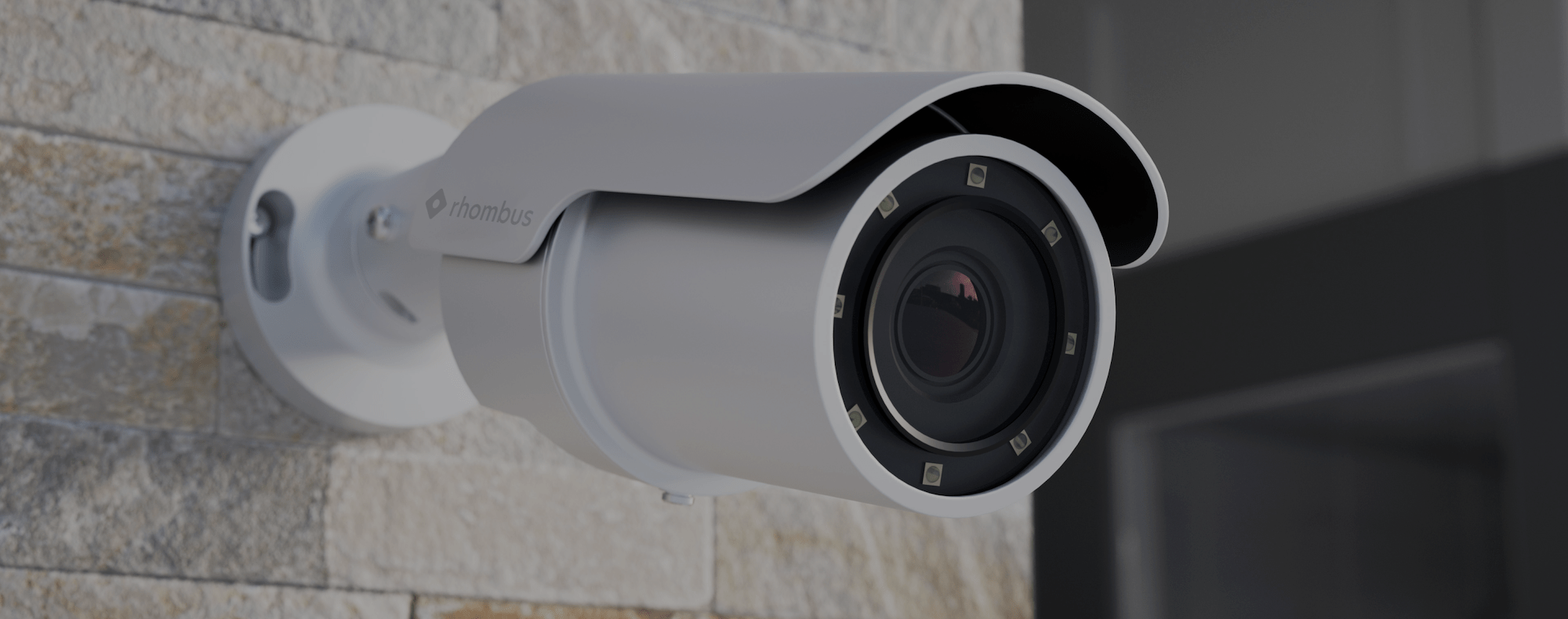

R510
Ruggedized, high-performing 4K bullet with AI analytics and 3X optical zoom
R510 Camera Specifications
Resolution
8.3MP image sensor, 3840 x 2160 resolution
Aperture
F/1.5
Pan / Tilt / Zoom
3X optical zoom + up to 3X digital PTZ
Field of View
102° - 44° Diagonal FoV
94° - 39° Horizontal FoV
62° - 22° Vertical FoV
Focal Length
3.6mm - 11mm motorized varifocal lens
Dimensions
146mm (5.75in) x 225mm (8.85in)) x 92mm (3.22in)
Weight
0.85kg (1.88lbs)
Weather Resistance
IP66
Night Vision
Infrared illuminators (130ft in low light)
Onboard Storage Included
512GB or 30 days
1TB or 60 days
Ethernet
10 / 100Mbps, MDI / MDI-X Auto Sensing
Power-Over-Ethernet
Standard 802.3af for one-cable installation
Power Consumption
Max 13 watts
Operating Temperature
-55˚ to 55˚ C
-67˚ to 131˚ F
Operating Humidity
10% - 90% RH
In the Box
Torx key, mounting screws, anchors, waterproof ethernet connector
Baseline Steady State
10 - 30 Kbps per camera
HD WAN Live Streaming
530 - 720 Kbps per camera
CE, FCC, IC, UK, AUS, NZ, NDAA, TAA Compliant
10-Year Warranty Included
R510 Compatible Accessories
For more information or to purchase accessories, contact sales@rhombus.com
- All Accessories
- Wall Mount
- Ceiling Mount
- Corner Mount
- Pole Mount

R500 Pole Bracket
$99
ACC-R5-POLE
Mounts R500-series bullet cameras to poles.

R500 Junction Box
$99
ACC-R5-JB
Junction box for use with R500-series bullet cameras.
