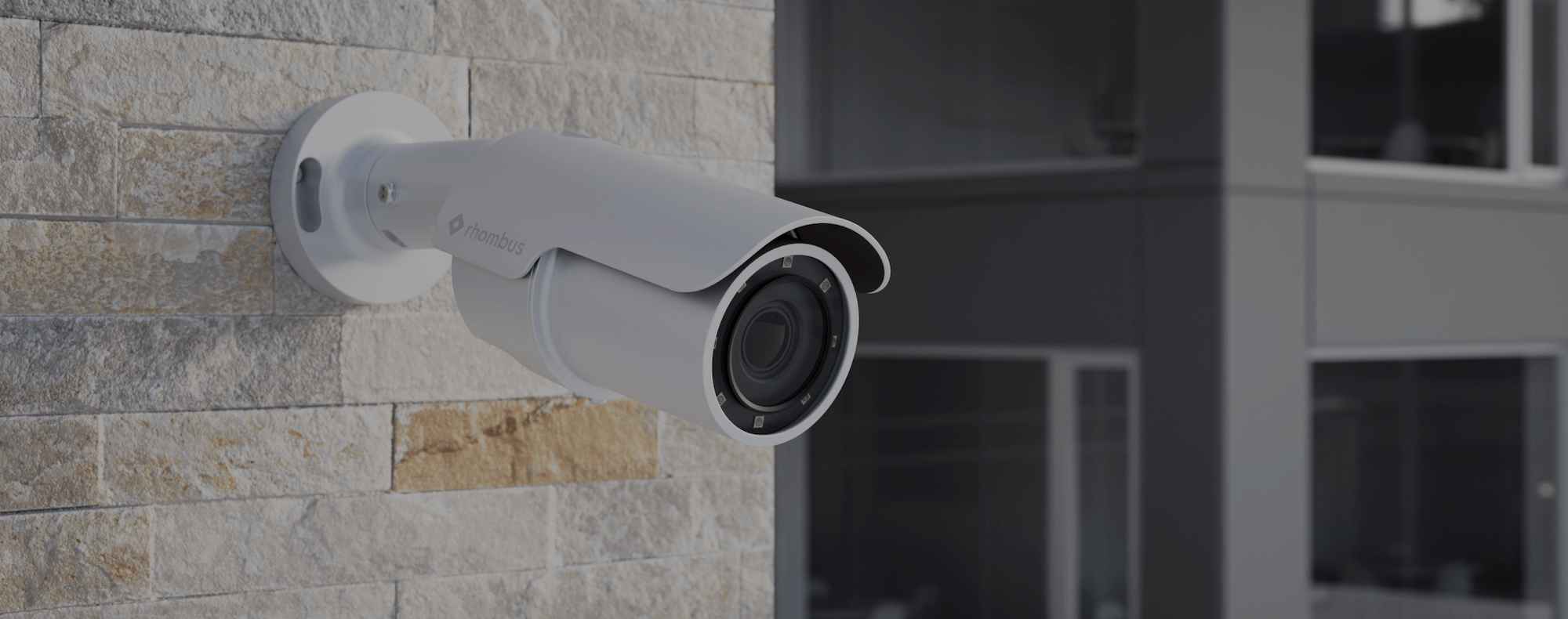

R500

High-performing, long-distance reading 4K bullet with AI analytics and 2.5x optical zoom.

R500 Camera Specifications

Resolution
8.3MP image sensor, 3840 x 2160 resolution
Aperture
F/1.5, P-iris
Pan / Tilt / Zoom
2.5X optical zoom + up to 3X digital PTZ
Field of View
44° - 18° Diagonal FoV
39° - 16° Horizontal FoV
22° - 9° Vertical FoV
Focal Length
11mm - 28mm motorized varifocal lens
Dimensions
146mm (5.75in) x 225mm (8.85in)) x 92mm (3.22in)
Weight
0.85kg (1.88lbs)
Weather Resistance
IP66
Night Vision
Infrared illuminators (130ft in low light)
Onboard Storage Included
512GB or 30 days
1TB or 60 days
Ethernet
10 / 100Mbps, MDI / MDI-X Auto Sensing
Power-Over-Ethernet
Standard 802.3af for one-cable installation
Power Consumption
Max 13 watts
Operating Temperature
-55˚ to 55˚ C
-67˚ to 131˚ F
Operating Humidity
10% - 90% RH
In the Box
Torx key, mounting screws, anchors, waterproof ethernet connector
Baseline Steady State
10 - 30 Kbps per camera
HD WAN Live Streaming
530 - 720 Kbps per camera
CE, FCC, IC, UK, AUS, NZ, NDAA, TAA Compliant
10-Year Warranty Included

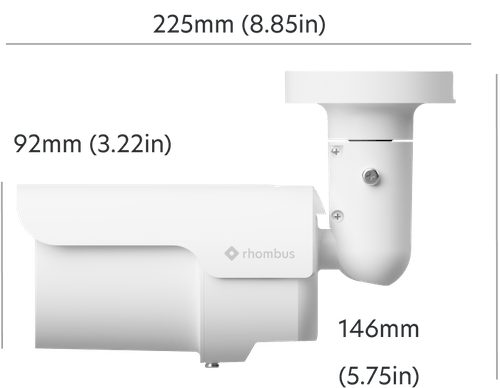

undefined camera with dimensions

R500 Accessories

For more information or to purchase accessories, contact sales@rhombus.com

Wall Mount
Ceiling Mount
Corner Mount
Pole Mount
DR40 Angle Wall Mount

DR40 Angle Wall Mount

$25

ACC-DR40-AWM

30 Degree angle wall mount for DR40 Video Intercom, used to improve viewing angle. Also compatible with ACC-DR40-WP.

DR20 Wall Plate

DR20 Wall Plate

$25

ACC-DR20-WP

Wall plate adapter for the DR20 Video Intercom mounted over standard 1-Gang wall boxes.

DR40 Wall Plate

DR40 Wall Plate

$25

ACC-DR40-WP

Wall plate adapter for the DR40 Video Intercom mounted over standard 1-Gang wall boxes.

Wired Temperature Probe

Wired Temperature Probe

$25

ACC-ENV-TEMP

Plugs directly into the E50 Environmental Sensor. Use for temperature monitoring of locations outside of E50 temperature range.

Wired Water Leak Cable

Wired Water Leak Cable

$25

ACC-ENV-LEAK

Plugs directly into the E50 Environmental Sensor and detects leaks. Daisy chain multiple to reach desired length.

R230 Junction Box

R230 Junction Box

$49

ACC-R23-JB

Outdoor junction box with the conduit attachment for R230 or R360 camera models.

R230 Cap

R230 Cap

$49

ACC-R23-CAP

Connect to Wall Arm, Ceiling Mount, or any mounting hardware with 1.5” NPT thread.

R360/R400 Pendant Cap

R360/R400 Pendant Cap

$49

ACC-R3R4-CAP

Connect to a Wall Arm, Ceiling Mount, or any mounting hardware with a standard 1.5” NPT thread.

Extension Rod

Extension Rod

$49

ACC-ROD-40CM

Extension rod for use with Ceiling Mounts or Arms, with standard 1.5” NPT connections on each end.

Junction Box

Junction Box

$49

ACC-R100-JB2

Outdoor junction box with the conduit attachment for R120 and R200 camera.

Pendant Cap

Pendant Cap

$49

ACC-R100-CAP

R120 and R200 pendant cap. Connect to Wall Arm, Ceiling Mount, or any mounting hardware with 1.5” NPT thread.

Wall Arm Junction Box

Wall Arm Junction Box

$49

ACC-ARM-JB

Junction box to provide protected space between arm and bracket.

Universal Drop Ceiling Mount

Universal Drop Ceiling Mount

$49

ACC-DCM1

Indoor adapter for mounting all dome and fisheye cameras* to drop ceilings with 9/16" and 15/16" grids.

R360 Wedge Mount

R360 Wedge Mount

$69

ACC-R3-JBW

15 Degree wedge mount/junction box, used to improve viewing angle for wall mounted fisheye cameras.

Arm

Arm

$79

ACC-R2-ARM

Mounts a downward facing camera with Cap to a wall, or corner (with Corner Bracket) or pole (with Pole Bracket).

Ceiling Mount

Ceiling Mount

$79

ACC-R2-CM

Pendant mount to be used with cap.

Pole Bracket

Pole Bracket

$99

ACC-R2-PB

Mounts the Arm to a pole.

R500 Junction Box

R500 Junction Box

$99

ACC-R5-JB

Junction box for use with R500-series bullet cameras.

R500 Pole Bracket

R500 Pole Bracket

$99

ACC-R5-POLE

Mounts R500-series bullet cameras to poles.

R600 Pendant Cap

R600 Pendant Cap

$99

ACC-R600-CAP

Mount the camera to other accessories to install to ceiling or building corners.

Corner Bracket

Corner Bracket

$99

ACC-R2-CB

Mounts to the Arm to a wall corner.
