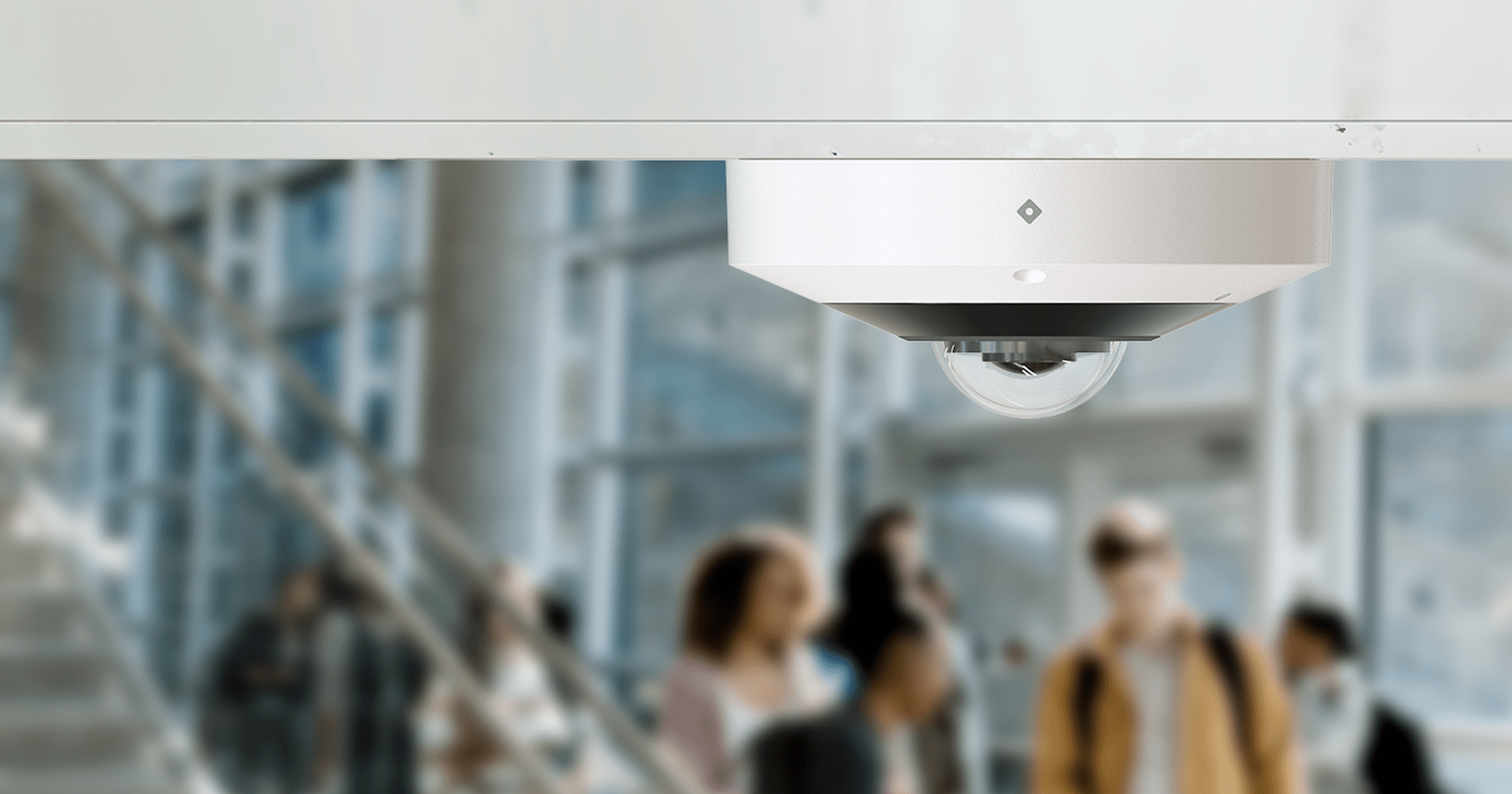

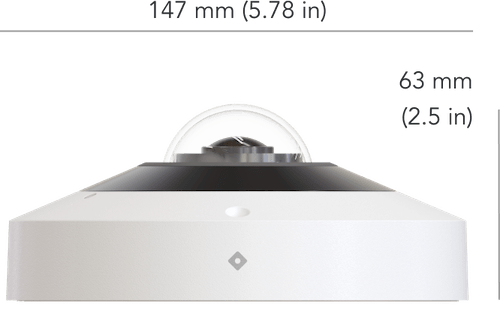

R360S Fisheye Camera
For expansive, indoor spaces, the Rhombus R360S fisheye camera delivers sharp 12.5MP imaging and immersive views for complete situational awareness.
R360S Camera Specifications
12.5 MP progressive CMOS sensor
Up to 3520 x 3520 resolution
180° Diagonal FoV
180° Horizontal FoV
180° Vertical FoV
Immersive view
Live, real-time dewarping
2 microSD cards
512 GB (30 days), 1 TB (60 days), 2 TB (90 days)
*Optional unlimited cloud archiving available
-45 ̊ to 55 ̊ C
-49 ̊ to 131 ̊ F
R360S Accessories
Use the filter to select a model and view compatible accessories. For more information or to purchase accessories, contact sales@rhombus.com
DR20 Wall Plate
$25
ACC-DR20-WP
Wall plate adapter for the DR20 Door Reader mounted over standard 1-Gang wall boxes.
DR40 Angle Wall Mount
$25
ACC-DR40-AWM
30 Degree angle wall mount for DR40 Video Intercom, used to improve viewing angle. Also compatible with ACC-DR40-WP.
DR40 Wall Plate
$25
ACC-DR40-WP
Wall plate adapter for the DR40 Video Intercom mounted over standard 1-Gang wall boxes.
Wired Temperature Probe
$25
ACC-ENV-TEMP
Plugs directly into the E50 Environmental Sensor. Use for temperature monitoring of locations outside of E50 temperature range.
Wired Water Leak Cable
$25
ACC-ENV-LEAK
Plugs directly into the E50 Environmental Sensor and detects leaks. Daisy chain multiple to reach desired length.
Extension Rod
$49
ACC-ROD-40CM
Extension rod for use with Ceiling Mounts or Arms, with standard 1.5” NPT connections on each end.
Junction Box
$49
ACC-R100-JB2
Outdoor junction box with the conduit attachment for R120 and R200 camera.
R230 Junction Box
$49
ACC-R23-JB
Outdoor junction box with the conduit attachment for R230 camera model.
R230 Cap
$49
ACC-R23-CAP
Connect to Wall Arm, Ceiling Mount, or any mounting hardware with 1.5” NPT thread.
R2A Pendant Cap
$49
ACC-R2A-CAP
Connect to Wall Arm, Ceiling Mount, or any mounting hardware with 1.5” NPT thread.
R400 Pendant Cap
$49
ACC-R3R4-CAP
Connect to a Wall Arm, Ceiling Mount, or any mounting hardware with a standard 1.5” NPT thread.
Universal Drop Ceiling Mount
$49
ACC-DCM1
Indoor adapter for mounting all dome and fisheye cameras* to drop ceilings with 9/16" and 15/16" grids.
Wall Arm Junction Box
$49
ACC-ARM-JB
Junction box to provide protected space between arm and bracket.
R360S Pendant Cap
$69
ACC-R3A-CAP
Connect to a Wall Arm, Ceiling Mount, or any mounting hardware with a standard 1.5” NPT thread.
Arm
$79
ACC-R2-ARM
Mounts a downward facing camera with Cap to a wall, or corner (with Corner Bracket) or pole (with Pole Bracket).
Ceiling Mount
$79
ACC-R2-CM
Pendant mount to be used with cap.
R520 Junction Box
$79
ACC-R52-JB
Junction box for use with R520 camera.
R360S Conduit Adapter
$89
ACC-R3A-CND
Allows for conduit to be threaded onto the adapter for a cleaner look.
Corner Bracket
$99
ACC-R2-CB
Mounts to the Arm to a wall corner.
Pole Bracket
$99
ACC-R2-PB
Mounts the Arm to a pole.
R5 Junction Box
$99
ACC-R5-JB
Junction box for use with R5-series bullet cameras.
R5 Pole Bracket
$99
ACC-R5-POLE
Mounts R5-series bullet cameras to poles.
R600 Pendant Cap
$99
ACC-R600-CAP
Mount the camera to other accessories to install to ceiling or building corners.
R360S Wedge Mount
$109
ACC-R3S-JBW
20 Degree wedge mount/junction box, used to improve viewing angle for wall mounted fisheye cameras.
N100 Rack Mount
$149
ACC-N2UA
Connect up to three N100 Relay devices.
