R360

Immersive 360˚ fisheye with multiple viewing options for maximum coverage.

R360 Camera Specifications

Resolution
12MP Progressive CMOS sensor
Aperture
F/2.8
Pan / Tilt / Zoom
Up to 2X digital PTZ
Field of View
180° Diagoinal FoV
180° Horizontal FoV
180° Vertical FoV
Focal Length
Immersive view — live, real-time dewarping

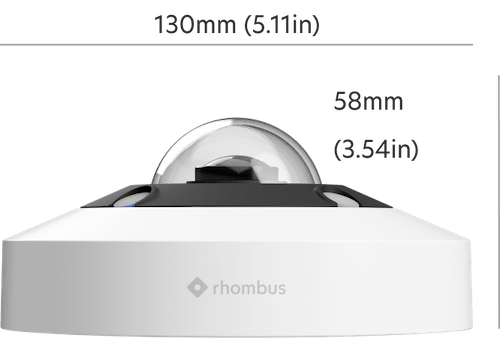

Dimensions
130mm (5.11in) x 58mm (3.54in)
Weight
0.57kg (1.25lbs)
Weather Resistance
IP66
Impact Resistance
IK10
Night Vision
Infrared illuminators (16ft in low light)
Onboard Storage Included
512GB or 30 days
1TB or 60 days
Ethernet
10 / 100Mbps, MDI / MDI-X Auto Sensing
Power-Over-Ethernet
Standard 802.3af for one-cable installation
Power Consumption
Max 9.2 watts
Operating Temperature
-30˚ to 55˚ C
-22˚ to 131˚ F
Operating Humidity
10% - 90% RH
In the Box
Torx key, mounting screws, anchors, waterproof ethernet connector
Baseline Steady State
10 - 30 Kbps per camera
HD WAN Live Streaming
530 - 720 Kbps per camera
CE, FCC, IC, UK, AUS, NZ, NDAA, TAA Compliant
undefined camera with dimensions
Download PDF

R360 Compatible Accessories

For more information or to purchase accessories, contact sales@rhombus.com
  • All Accessories
    selected icon
  • Wall Mount
  • Ceiling Mount
  • Corner Mount
  • Pole Mount
Corner Bracket

Corner Bracket

$99

ACC-R2-CB

Mounts to the Arm to a wall corner.

Arm

Arm

$99

ACC-R2-ARM

Mounts a downward facing camera with Cap to a wall, or corner (with Corner Bracket) or pole (with Pole Bracket).

Ceiling Mount

Ceiling Mount

$79

ACC-R2-CM

Pendant mount to be used with cap.

R360/R400 Cap

R360/R400 Cap

$49

ACC-R3R4-CAP

Pendant cap for R360 and R400 cameras, connecting them to a Wall Arm or Ceiling Mount, or any mounting hardware with a standard 1.5” NPT thread.

Pole Bracket

Pole Bracket

$99

ACC-R2-PB

Mounts the Arm to a pole.

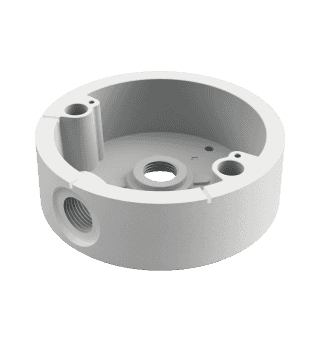

Wall Arm Junction Box

Wall Arm Junction Box

$49

ACC-ARM-JB

Junction box to provide protected space between arm and bracket.

Extenstion Rod

Extenstion Rod

$49

ACC-ROD-40CM

Extension rod for use with Ceiling Mounts or Arms, with standard 1.5” NPT connections on each end.
