R400

Vandal and weather-resistant, high-resolution 4K dome with AI analytics and 3x optical zoom.

R400 Camera Specifications

Resolution
8.3MP image sensor, 3840 x 2160 resolution
Aperture
F/1.5
Pan / Tilt / Zoom
2.5X optical zoom + up to 3X digital PTZ
Field of View
102° - 44° Diagonal FoV
94° - 39° Horizontal FoV
62° - 22° Vertical FoV
Focal Length
3.6mm - 11mm motorized varifocal lens

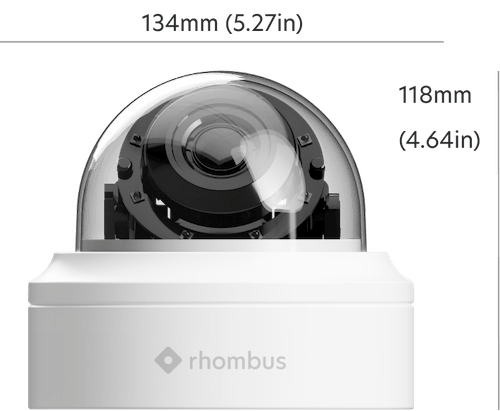

Dimensions
134mm (5.27in) x 118mm (4.64in)
Weight
0.79kg (1.75lbs)
Weather Resistance
IP66
Impact Resistance
IK10
Night Vision
Infrared illuminators (130ft in low light)
Onboard Storage Included
512GB or 30 days
1TB or 60 days
Ethernet
10 / 100Mbps, MDI / MDI-X Auto Sensing
Power-Over-Ethernet
Standard 802.3af for one-cable installation
Power Consumption
Max 11.7 watts
Operating Temperature
-55˚ to 55˚ C
-67˚ to 131˚ F
Operating Humidity
<90% RH
In the Box
Torx key, mounting screws, anchors
Baseline Steady State
10 - 30 Kbps per camera
HD WAN Live Streaming
530 - 720 Kbps per camera
CE, FCC, IC, UK, AUS, NZ, NDAA, TAA Compliant
10-Year Warranty Included
undefined camera with dimensions

R400 Compatible Accessories

For more information or to purchase accessories, contact sales@rhombus.com
  • All Accessories
    selected icon
  • Wall Mount
  • Ceiling Mount
  • Corner Mount
  • Pole Mount
Corner Bracket

Corner Bracket

$99

ACC-R2-CB

Mounts to the Arm to a wall corner.

Arm

Arm

$79

ACC-R2-ARM

Mounts a downward facing camera with Cap to a wall, or corner (with Corner Bracket) or pole (with Pole Bracket).

Ceiling Mount

Ceiling Mount

$79

ACC-R2-CM

Pendant mount to be used with cap.

R360/R400 Cap

R360/R400 Cap

$49

ACC-R3R4-CAP

Pendant cap for R360 and R400 cameras, connecting them to a Wall Arm or Ceiling Mount, or any mounting hardware with a standard 1.5” NPT thread.

Pole Bracket

Pole Bracket

$99

ACC-R2-PB

Mounts the Arm to a pole.

Wall Arm Junction Box

Wall Arm Junction Box

$49

ACC-ARM-JB

Junction box to provide protected space between arm and bracket.

Extension Rod

Extension Rod

$49

ACC-ROD-40CM

Extension rod for use with Ceiling Mounts or Arms, with standard 1.5” NPT connections on each end.

Universal Drop Ceiling Mount

Universal Drop Ceiling Mount

$49

ACC-DCM1

Indoor adapter for mounting all dome and fisheye cameras* to drop ceilings with 9/16" and 15/16" grids.

*Also compatible with A100 Audio Gateway
