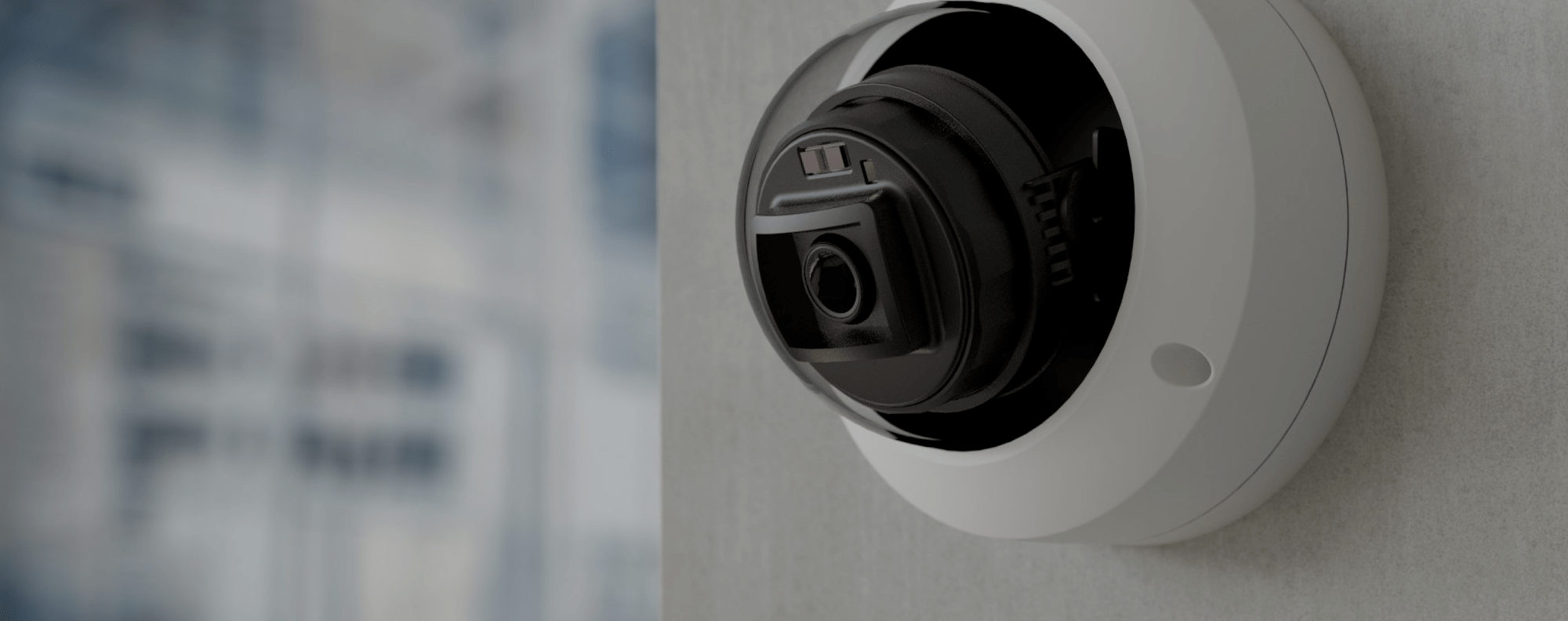

R120

Vandal and weather-resistant, all-purpose dome with AI analytics and Rhombus sensor compatibility.

R120 Camera Specifications

Resolution
2MP sensor, 1920 x 1080 resolution
Aperture
F/2.0
Pan / Tilt / Zoom
Up to 2X digital PTZ
Field of View
111° Diagoinal FoV
104° Horizontal FoV
71° Vertical FoV
Focal Length
2.8mm
Dimensions
118mm (4.64in) x 90mm (3.54in)
Weight
0.64kg (1.42lbs)
Weather Resistance
IP66
Impact Resistance
IK10
Night Vision
Infrared illuminators (100ft in low light)
Onboard Storage Included
128GB or 20 days
Ethernet
10 / 100Mbps, MDI / MDI-X Auto Sensing
Power-Over-Ethernet
Standard 802.3af for one-cable installation
Power Consumption
Max 10.5 watts
Operating Temperature
-20˚ to 50˚ C
-4˚ to 122˚ F
Operating Humidity
<95% RH
In the Box
Torx key, mounting screws, anchors
Baseline Steady State
10 - 30 Kbps per camera
HD WAN Live Streaming
530 - 720 Kbps per camera
Rhombus Sensor Network Compatible
CE, FCC, IC, UK, AUS, NZ, NDAA, TAA Compliant

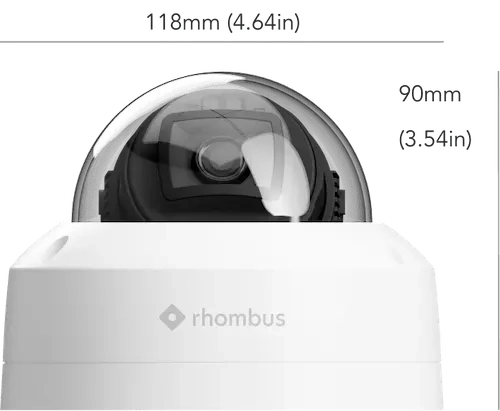

undefined camera with dimensions
Download PDF

R120 Compatible Accessories

For more information or to purchase accessories, contact sales@rhombus.com
  • All Accessories
    selected icon
  • Wall Mount
  • Ceiling Mount
  • Corner Mount
  • Pole Mount

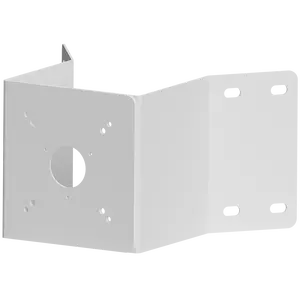

Corner Bracket

Corner Bracket

$99

ACC-R2-CB

Mounts to the Arm to a wall corner.

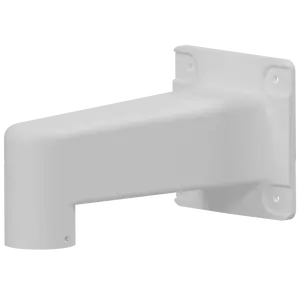

Arm

Arm

$99

ACC-R2-ARM

Mounts a downward facing camera with Cap to a wall, or corner (with Corner Bracket) or pole (with Pole Bracket).

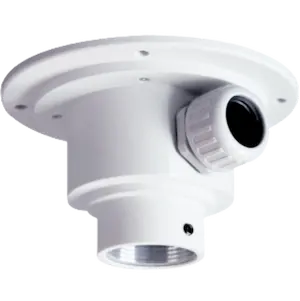

Ceiling Mount

Ceiling Mount

$79

ACC-R2-CM

Pendant mount to be used with cap.

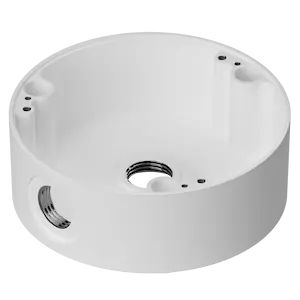

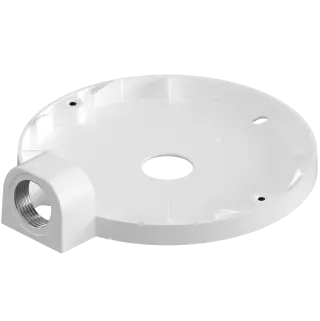

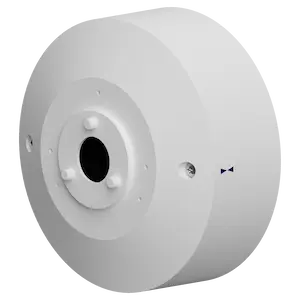

Junction Box

Junction Box

$49

ACC-R100-JB2

Outdoor junction box with the conduit attachment for R120 and R200 camera.

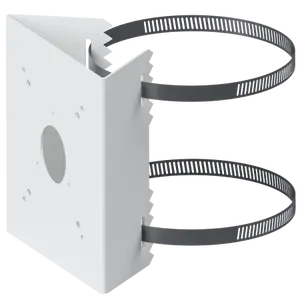

Pole Bracket

Pole Bracket

$99

ACC-R2-PB

Mounts the Arm to a pole.

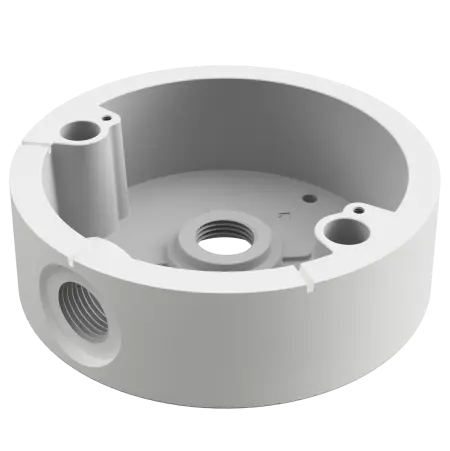

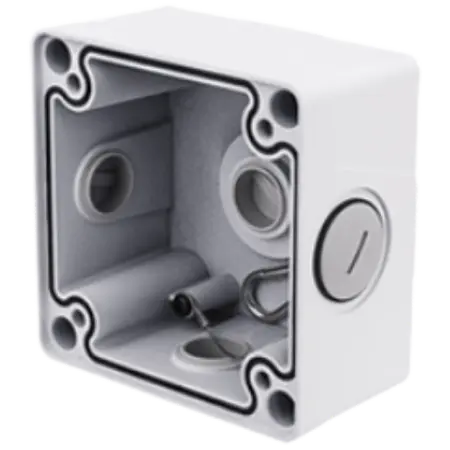

Wall Arm Junction Box

Wall Arm Junction Box

$49

ACC-ARM-JB

Junction box to provide protected space between arm and bracket.

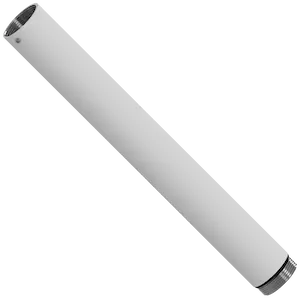

Extenstion Rod

Extenstion Rod

$49

ACC-ROD-40CM

Extension rod for use with Ceiling Mounts or Arms, with standard 1.5” NPT connections on each end.

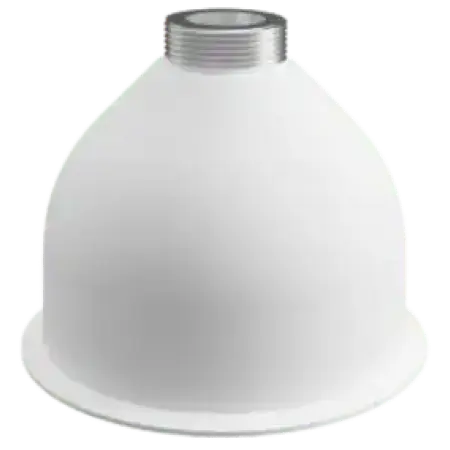

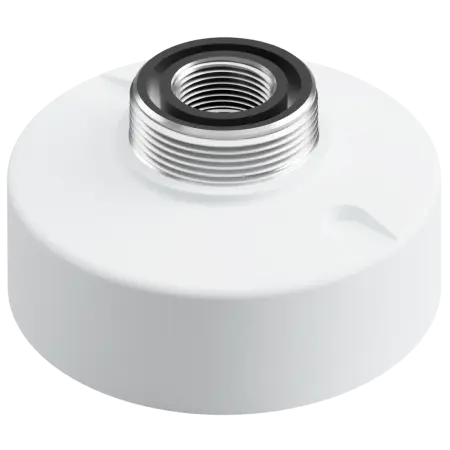

Pendant Cap

Pendant Cap

$49

ACC-R100-CAP

R120 and R200 pendant cap. Connect to Wall Arm, Ceiling Mount, or any mounting hardware with 1.5” NPT thread.

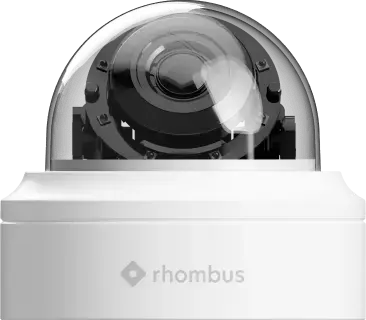

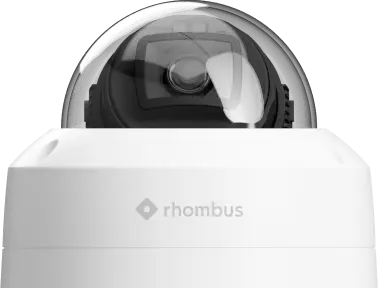

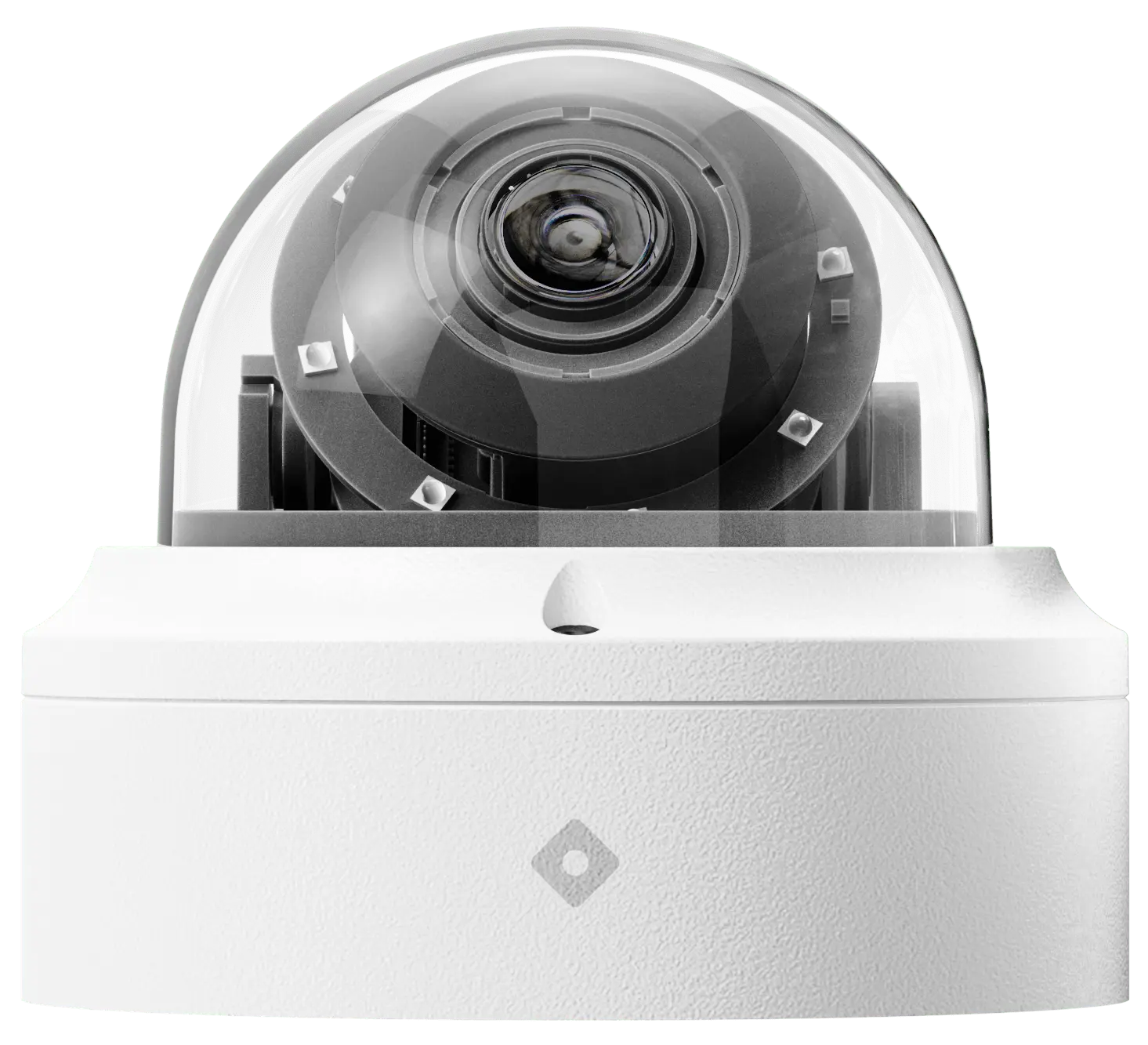

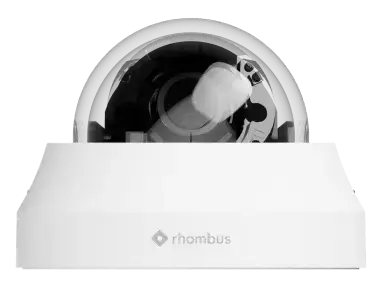

Explore Other Dome Cameras
