DR40

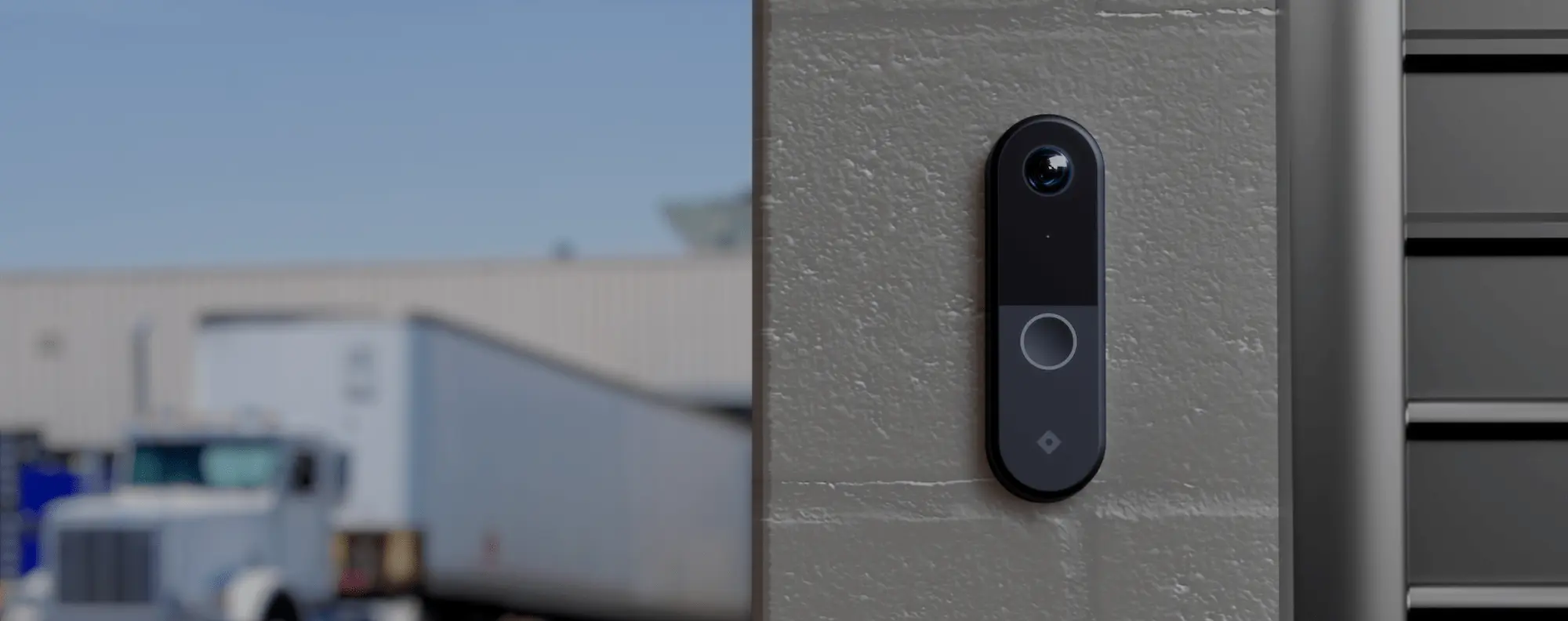

Equipped with a door reader, camera, and intercom, the DR40 makes it easy to monitor entry events, grant access, and seamlessly communicate with visitors.
DR40 Specifications

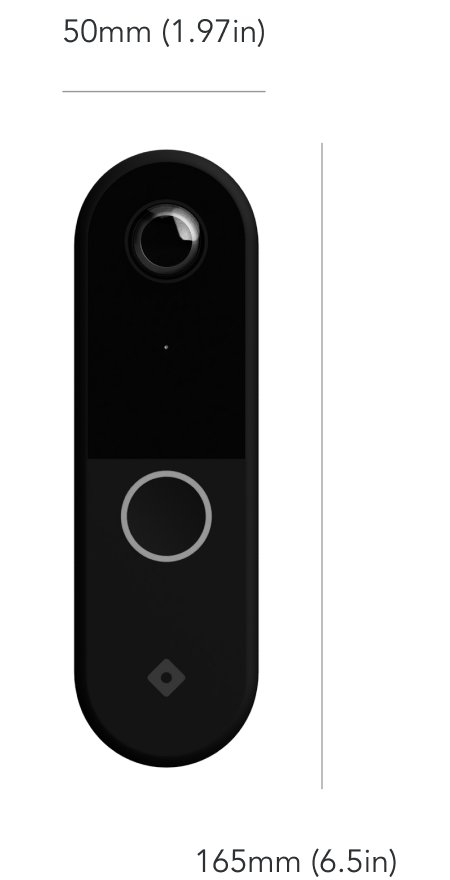

Dimensions
Mullion 50mm (1.97in) x 165mm (6.5in) x 35.1mm (1.38in) (height off wall, 38.3mm including cable)
Credential Compatibility
Rhombus Badge, ISO 14443A (CSN), Rhombus Key App
Weight
0.40kg (0.9lb))
Weather Resistance
IP65
Operating Temperature
-40˚C (-40˚F) to 50˚C (122˚F)
Operating Humidity
10% - 90%
Image Sensor
OS05A20
Resolution
5MP sensor, 2688 x 1944 resolution
Field of View
155.2˚ Diagonal FoV
118.4° Horizontal FoV
86.4°Vertical FoV
Focal Length
2.6mm
Input Voltage
802.3af or 11-28VDC
Power Consumption MAX
9.3W
Frequency
13.56 MHz
Controller Compatibility

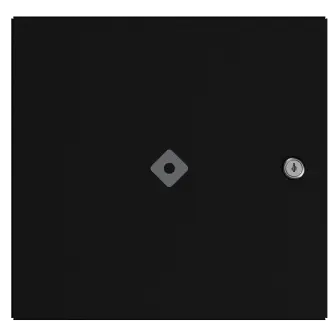

DC20
Ethernet
10 / 100Mbps
Mounting
Wood / drywall screws, 1-Gang Wall Plate
Aux Relay
BLE Enabled
Rhombus Sensor Network Compatible
NDAA, FCC, UL 294 Compliant
10-Year Warranty Included
DR40 Accessories
For more information or to purchase accessories, contact sales@rhombus.com
DR20 Wall Plate
$25
ACC-DR20-WP
Wall plate adapter for the DR20 Video Intercom mounted over standard 1-Gang wall boxes.
DR40 Wall Plate
$25
ACC-DR40-WP
Wall plate adapter for the DR40 Video Intercom mounted over standard 1-Gang wall boxes.
DR40 Angle Wall Mount
$25
ACC-DR40-AWM
30 Degree angle wall mount for DR40 Video Intercom, used to improve viewing angle. Also compatible with ACC-DR40-WP.
Wired Temperature Probe
$25
ACC-ENV-TEMP
Plugs directly into the E50 Environmental Sensor. Use for temperature monitoring of locations outside of E50 temperature range.
Wired Water Leak Cable
$25
ACC-ENV-LEAK
Plugs directly into the E50 Environmental Sensor and detects leaks. Daisy chain multiple to reach desired length.
Extension Rod
$49
ACC-ROD-40CM
Extension rod for use with Ceiling Mounts or Arms, with standard 1.5” NPT connections on each end.
R230 Junction Box
$49
ACC-R23-JB
Outdoor junction box with the conduit attachment for R230 or R360 camera models.
R230 Cap
$49
ACC-R23-CAP
Connect to Wall Arm, Ceiling Mount, or any mounting hardware with 1.5” NPT thread.
Junction Box
$49
ACC-R100-JB2
Outdoor junction box with the conduit attachment for R120 and R200 camera.
R360/R400 Pendant Cap
$49
ACC-R3R4-CAP
Connect to a Wall Arm, Ceiling Mount, or any mounting hardware with a standard 1.5” NPT thread.
Universal Drop Ceiling Mount
$49
ACC-DCM1
Indoor adapter for mounting all dome and fisheye cameras* to drop ceilings with 9/16" and 15/16" grids.
Pendant Cap
$49
ACC-R100-CAP
R120 and R200 pendant cap. Connect to Wall Arm, Ceiling Mount, or any mounting hardware with 1.5” NPT thread.
Wall Arm Junction Box
$49
ACC-ARM-JB
Junction box to provide protected space between arm and bracket.
R360 Wedge Mount
$69
ACC-R3-JBW
15 Degree wedge mount/junction box, used to improve viewing angle for wall mounted fisheye cameras.
Ceiling Mount
$79
ACC-R2-CM
Pendant mount to be used with cap.
Arm
$79
ACC-R2-ARM
Mounts a downward facing camera with Cap to a wall, or corner (with Corner Bracket) or pole (with Pole Bracket).
Corner Bracket
$99
ACC-R2-CB
Mounts to the Arm to a wall corner.
R500 Junction Box
$99
ACC-R5-JB
Junction box for use with R500-series bullet cameras.
R500 Pole Bracket
$99
ACC-R5-POLE
Mounts R500-series bullet cameras to poles.
Pole Bracket
$99
ACC-R2-PB
Mounts the Arm to a pole.
R600 Pendant Cap
$99
ACC-R600-CAP
Mount the camera to other accessories to install to ceiling or building corners.
