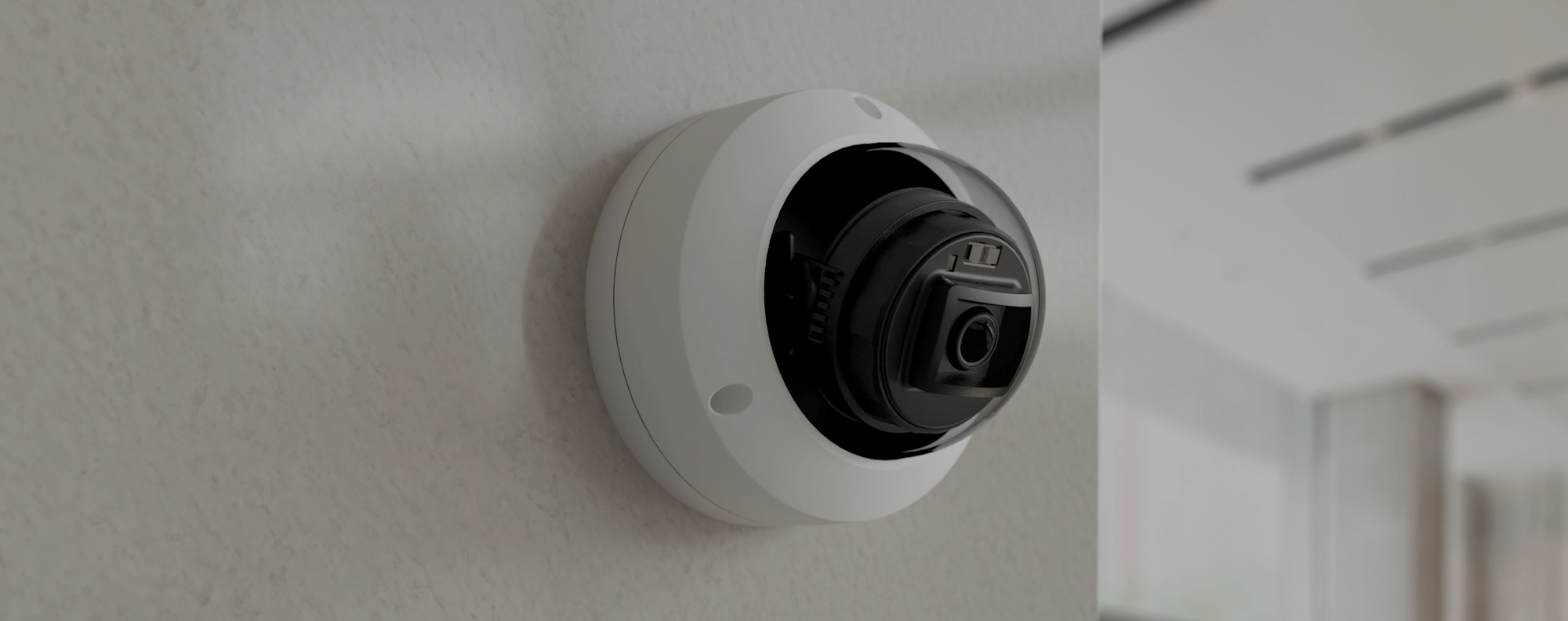

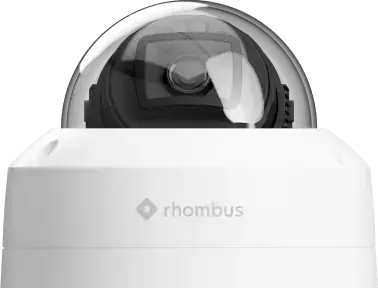

R200
Vandal and weather-resistant, all-purpose dome with AI analytics and Rhombus sensor compatibility.
R200 Camera Specifications
Resolution
5MP sensor, 2592 x 1944 resolution
Aperture
F/2.0
Pan / Tilt / Zoom
Up to 2X digital PTZ
Field of View
116° Diagoinal FoV
104° Horizontal FoV
87° Vertical FoV
Focal Length
2.8mm

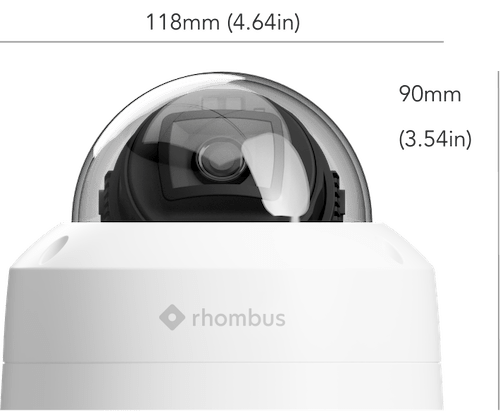

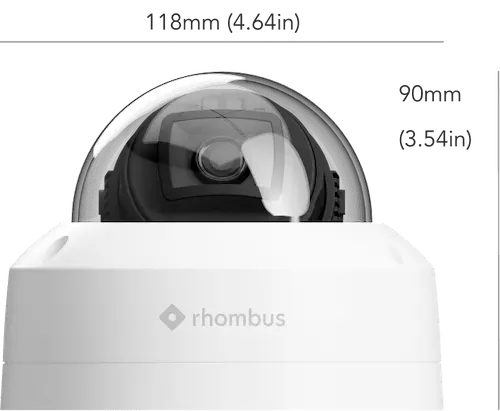

Dimensions
118mm (4.64in) x 90mm (3.54in)
Weather Resistance
IP66
Impact Resistance
IK10
Night Vision
Infrared illuminators (100ft in low light)
Onboard Storage Included
128GB or 20 days
256GB or 40 days
512GB or 90 days
1TB or 180 days
Ethernet
10 / 100Mbps, MDI / MDI-X Auto Sensing
Power-Over-Ethernet
Standard 802.3af for one-cable installation
Power Consumption
Max 10.5 watts
Operating Temperature
-20˚ to 50˚ C
-4˚ to 122˚ F
Operating Humidity
<95% RH
In the Box
Torx key, mounting screws, anchors
Baseline Steady State
10 - 30 Kbps per camera
HD WAN Live Streaming
530 - 720 Kbps per camera
Rhombus Sensor Network Compatible
CE, FCC, NDAA, TAA Compliant

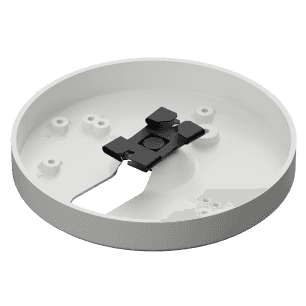

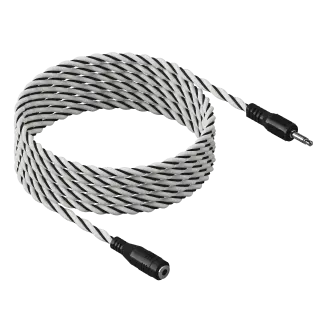

R200 Compatible Accessories
For more information or to purchase accessories, contact sales@rhombussystems.com
Connected Sensors
Video security meets real-time sensor data. Receive real-time alerts with synchronized video evidence to streamline response.

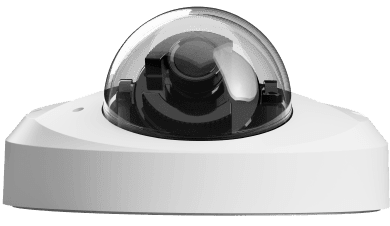

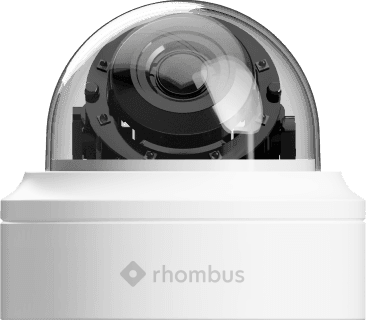

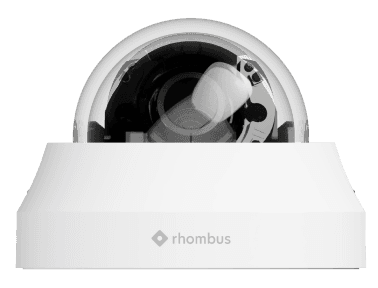

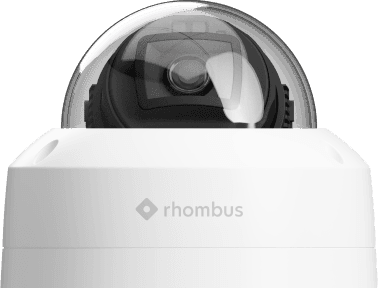

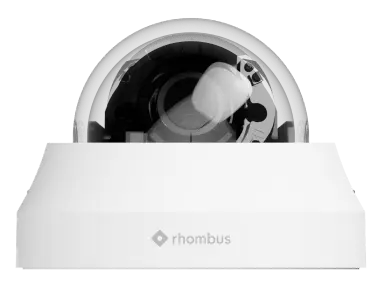

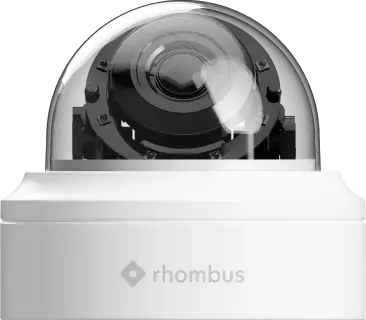

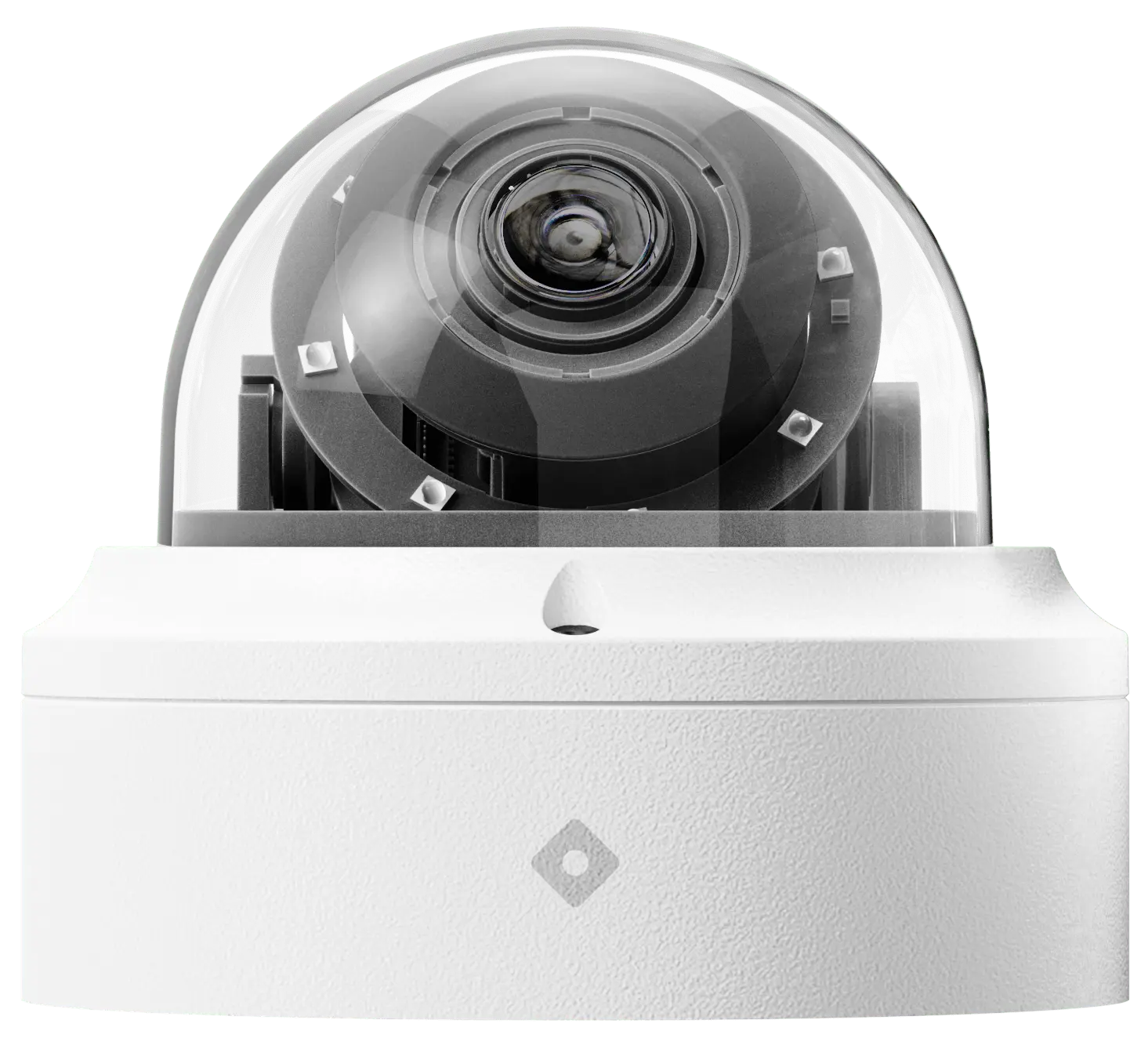

Explore Other Dome Cameras
