Relay Core: Cloud NVR

Integrates existing third-party cameras for a simplified migration to cloud-managed physical security. Discover best-in-class cloud NVR that transforms yesterday's cameras into tomorrow's intelligence.

Get a Live Demo

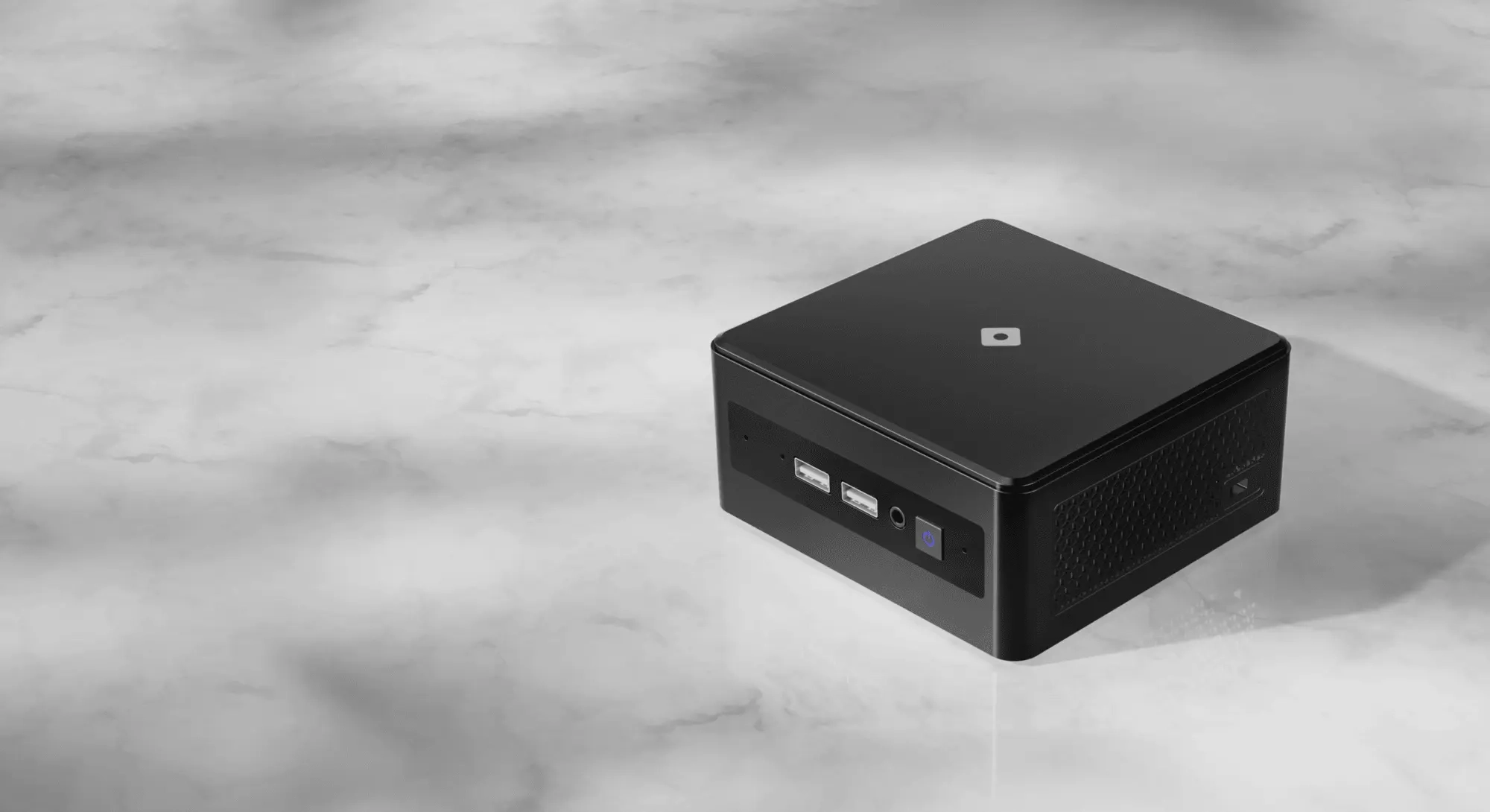

N100 Relay Core Overview and Specifications

Rhombus Relay Core lets organizations easily upgrade their existing cameras and gain the benefits of the Rhombus platform. With remote access, AI insights, and centralized management in a compact, easy-to-use form factor, Relay Core transforms third-party RTSP streaming cameras into smart cameras on the Rhombus console.

The N100 uses ONVIF protocols, when supported, to ingest third-party cameras. Once camera streams reach the Rhombus device, video footage and cloud communication are fully encrypted.¹

Download Specs

Onboard Storage

2TB

Camera Storage

Up to 20 days of storage per camera²

Networking

1x 2.5Gb RJ45

Dimensions

117mm x 112 mm x 54mm

Power Supply

12-24VDC input, 19V 120W external PSU included

Power Consumption

120W max

N100 License Options

View and storage only with no additional license

Standard Analytics with Rhombus Professional License³

Advanced Analytics with Rhombus Enterprise License³

CE, FCC, IC, UK, AUS, NZ, NDAA, TAA Compliant

Rhombus 5-Year Warranty Included

¹ As camera manufacturers own their firmware updates, Rhombus cannot offer firmware updates for non-Rhombus cameras. Users will need to manage and upgrade their firmware to avoid potential security issues.

² Days of storage and number of cameras per device can vary based on camera resolution, bitrate, and motion.

³ Performance of Rhombus AI analytics can vary based on camera image quality and performance.
